diaedge
MSMHZDD11/32
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494434

ANSI

MSMHZD/11/32

ISO

MSMHZDD11/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

14

Regular price $172.76 USD
Regular price Sale price $172.76 USD
Sale

EDP

494434

ANSI

MSMHZD/11/32

ISO

MSMHZDD11/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

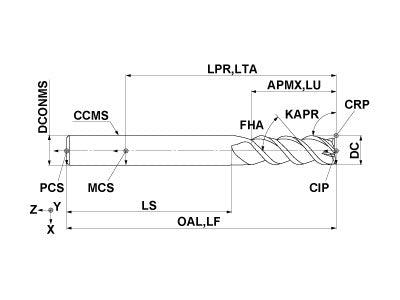

  • Drawings
  • Technical Information
MSMHZDD11/32
Coolant
External
Hand
Right

Unit: inch

DC
0.3438
APMX
0.75
LU
0.75
LH
0.841
OAL
2.75
DCONMS
0.375
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD11/32

Unit: inch

DC
0.3438
APMX
0.75
LU
0.75
LH
0.841
OAL
2.75
DCONMS
0.375
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
