MSMHZDD7/16
Skip to product information

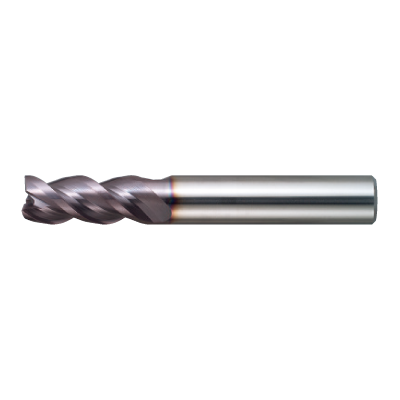

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494469

ANSI

MSMHZD/7/16

ISO

MSMHZDD7/16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

21

Regular price $216.85 USD
Regular price Sale price $216.85 USD
Sale

EDP

494469

ANSI

MSMHZD/7/16

ISO

MSMHZDD7/16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

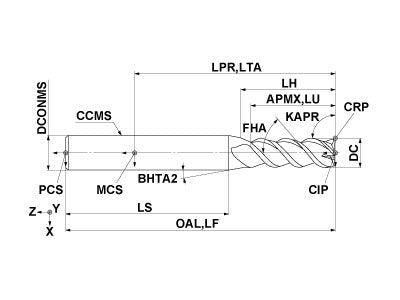

  • Drawings
  • Technical Information
MSMHZDD7/16
Coolant
External
Hand
Right

Unit: inch

DC
0.4375
APMX
0.875
LU
0.875
LH
0.966
OAL
3
DCONMS
0.5
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD7/16

Unit: inch

DC
0.4375
APMX
0.875
LU
0.875
LH
0.966
OAL
3
DCONMS
0.5
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
