MSMHZDD1/2
Skip to product information

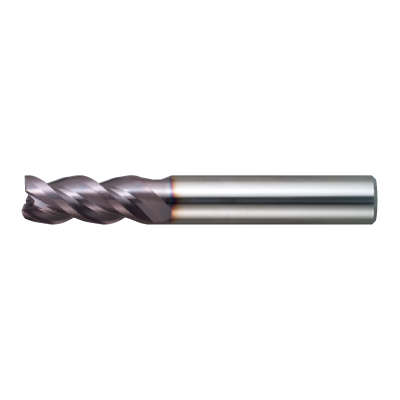

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494485

ANSI

MSMHZD/1/2

ISO

MSMHZDD1/2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

22

Regular price $244.95 USD
Regular price Sale price $244.95 USD
Sale

EDP

494485

ANSI

MSMHZD/1/2

ISO

MSMHZDD1/2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

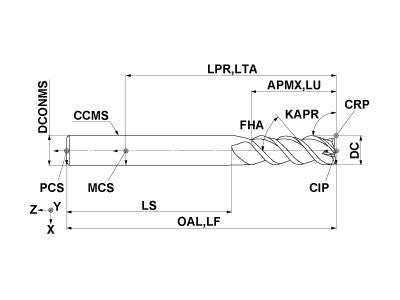

  • Drawings
  • Technical Information
MSMHZDD1/2
Coolant
External
Hand
Right

Unit: inch

DC
0.5
APMX
1
LU
1
LH
1
OAL
3.5
DCONMS
0.5
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD1/2

Unit: inch

DC
0.5
APMX
1
LU
1
LH
1
OAL
3.5
DCONMS
0.5
FHA
45.0
ZEFP
3
ZEFF
3
