diaedge
MSMHZDD3/4
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494514

ANSI

MSMHZD/3/4

ISO

MSMHZDD3/4

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

6

Regular price $635.83 USD
Regular price Sale price $635.83 USD
Sale

EDP

494514

ANSI

MSMHZD/3/4

ISO

MSMHZDD3/4

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

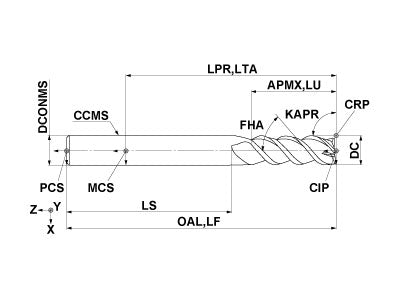

  • Drawings
  • Technical Information
MSMHZDD3/4
Coolant
External
Hand
Right

Unit: inch

DC
0.75
APMX
1.25
LU
1.25
LH
1.25
OAL
5.5
DCONMS
0.75
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD3/4

Unit: inch

DC
0.75
APMX
1.25
LU
1.25
LH
1.25
OAL
5.5
DCONMS
0.75
FHA
45.0
ZEFP
3
ZEFF
3
