diaedge
GYAR20Q90A-F06
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

503370

ANSI

GYAR20Q90A-F06

ISO

GYAR20Q90A-F06

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

2

Regular price $274.27 USD
Regular price Sale price $274.27 USD
Sale

EDP

503370

ANSI

GYAR20Q90A-F06

ISO

GYAR20Q90A-F06

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

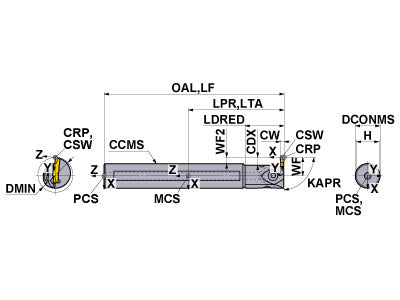

  • Drawings
  • Technical Information
GYAR20Q90A-F06
Coolant
Internal
Hand
Right

Unit: mm

CW
3
CDX
6
DMIN
25
DCONMS
20
H
18
LF
180
WF
14.5
WF2
4.5
OAL
180
GYAR20Q90A-F06

Unit: mm

CW
3
CDX
6
DMIN
25
DCONMS
20
H
18
LF
180
WF
14.5
WF2
4.5
OAL
180

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20R 110554 TKY20R
inventory mark
$3.49
GY05016S 502730 GY05016S
inventory mark
$14.41
