APX3000UR163FA16SA
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

504305

ANSI

APX3000UR163FA16SA

ISO

APX3000UR163FA16SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
85

Price
$368.17 USD
$368.17 USD
Sale

EDP

504305

ANSI

APX3000UR163FA16SA

ISO

APX3000UR163FA16SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

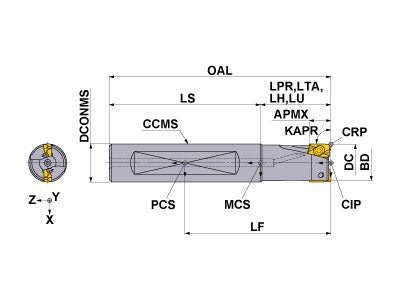

  • Drawings
APX3000UR163FA16SA
Coolant
Internal
Hand
Right

Unit: mm

DC
25.4
LF
76.994
APMX
10
LH
39.878
OAL
120.65
DCONMS
25.4
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.904
APX3000UR163FA16SA

Unit: mm

DC
25.4
LF
76.994
APMX
10
LH
39.878
OAL
120.65
DCONMS
25.4
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.904


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25-1 291590 TPS25-1
inventory mark
$3.36
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
