diaedge
APX3000UR164FA12SA
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

504313

ANSI

APX3000UR164FA12SA

ISO

APX3000UR164FA12SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
56

Price
$372.81 USD
$372.81 USD
Sale

EDP

504313

ANSI

APX3000UR164FA12SA

ISO

APX3000UR164FA12SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

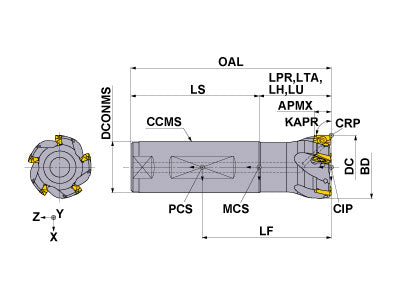

  • Drawings
APX3000UR164FA12SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
4.375
APMX
0.394
LH
1.57
OAL
4.375
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.5
APX3000UR164FA12SA

Unit: inch

DC
1
LF
4.375
APMX
0.394
LH
1.57
OAL
4.375
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.5


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$5.54
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS25-1 291590 TPS25-1
inventory mark
$2.96
