diaedge
APX3000UR246FA20SA
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

504348

ANSI

APX3000UR246FA20SA

ISO

APX3000UR246FA20SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
25

Price
$471.91 USD
$471.91 USD
Sale

EDP

504348

ANSI

APX3000UR246FA20SA

ISO

APX3000UR246FA20SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

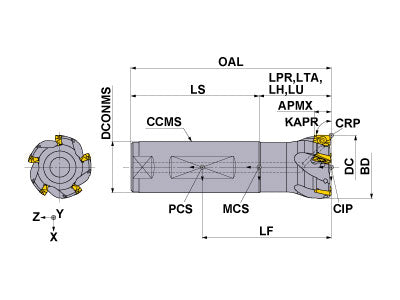

  • Drawings
APX3000UR246FA20SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
5.125
APMX
0.394
LH
1.97
OAL
5.125
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
1.6
APX3000UR246FA20SA

Unit: inch

DC
1.5
LF
5.125
APMX
0.394
LH
1.97
OAL
5.125
DCONMS
1.25
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
1.6


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$5.54
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS25-1 291590 TPS25-1
inventory mark
$2.96
