diaedge
BRP6UPR1503X
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

504858

ANSI

BRP6UPR1503X

ISO

BRP6UPR1503X

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

29

Regular price $392.07 USD
Regular price Sale price $392.07 USD
Sale

EDP

504858

ANSI

BRP6UPR1503X

ISO

BRP6UPR1503X

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

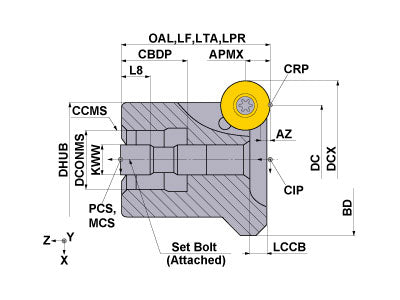

  • Drawings
  • Technical Information
BRP6UPR1503X
Coolant
External
Hand
Right

Unit: inch

DC
0.996
DCX
1.5
LF
2
APMX
0.24
OAL
2
DCONMS
0.75
NOF
3
ZEFF
3
ZEFP
3
RMPX
11.78
GAMF
-4
GAMP
5
BRP6UPR1503X

Unit: inch

DC
0.996
DCX
1.5
LF
2
APMX
0.24
OAL
2
DCONMS
0.75
NOF
3
ZEFF
3
ZEFP
3
RMPX
11.78
GAMF
-4
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.74
TKY15D 106900 TKY15D
inventory mark
$9.09
HDSU37513 504874 HDSU37513
inventory mark
$74.97
