EDP

504938

ANSI

AHX640WR0410E

ISO

AHX640WR0410E

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

20

Regular price $1,330.10 USD
Regular price Sale price $1,330.10 USD
Sale

EDP

504938

ANSI

AHX640WR0410E

ISO

AHX640WR0410E

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

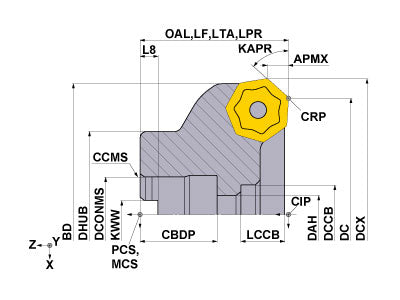

  • Drawings
  • Technical Information
AHX640WR0410E
Coolant
External
Hand
Right

Unit: inch

DC
4
DCX
4.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
10
ZEFF
10
ZEFP
10
KAPR
50
RPMX
7700
GAMF
-4
GAMP
-6
WT
7.3
AHX640WR0410E

Unit: inch

DC
4
DCX
4.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
10
ZEFF
10
ZEFP
10
KAPR
50
RPMX
7700
GAMF
-4
GAMP
-6
WT
7.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
LS0622T 504428 LS0622T
inventory mark
$10.96
CWAHX640WN 504410 CWAHX640WN
inventory mark
$31.16
TKY15T 106903 TKY15T
inventory mark
$4.52
