diaedge

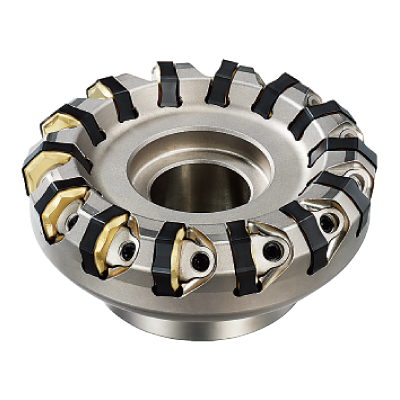

AHX640WR0512E
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

504946

ANSI

AHX640WR0512E

ISO

AHX640WR0512E

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

18

Regular price $1,594.29 USD
Regular price Sale price $1,594.29 USD
Sale

EDP

504946

ANSI

AHX640WR0512E

ISO

AHX640WR0512E

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

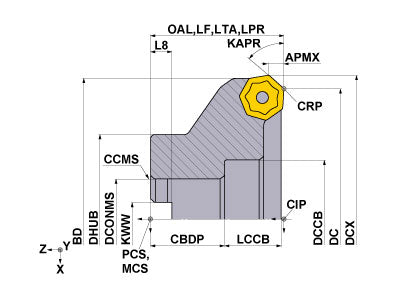

  • Drawings
  • Technical Information
AHX640WR0512E
Coolant
External
Hand
Right

Unit: inch

DC
5
DCX
5.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
12
ZEFF
12
ZEFP
12
KAPR
50
RPMX
6500
GAMF
-4
GAMP
-6
WT
8.8
AHX640WR0512E

Unit: inch

DC
5
DCX
5.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
1.5
NOF
12
ZEFF
12
ZEFP
12
KAPR
50
RPMX
6500
GAMF
-4
GAMP
-6
WT
8.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
LS0622T 504428 LS0622T
inventory mark
$10.96
TKY15T 106903 TKY15T
inventory mark
$4.52
CWAHX640WN 504410 CWAHX640WN
inventory mark
$31.16
