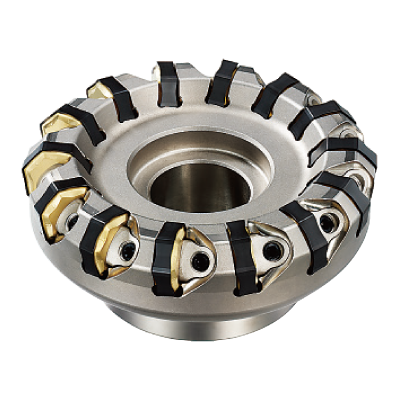

diaedge
AHX640WR0820M
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

504962

ANSI

AHX640WR0820M

ISO

AHX640WR0820M

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

5

Regular price $2,657.11 USD
Regular price Sale price $2,657.11 USD
Sale

EDP

504962

ANSI

AHX640WR0820M

ISO

AHX640WR0820M

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

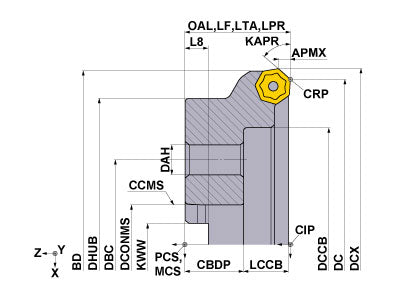

  • Drawings
  • Technical Information
AHX640WR0820M
Coolant
External
Hand
Right

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
20
ZEFF
20
ZEFP
20
KAPR
50
RPMX
4000
GAMF
-4
GAMP
-6
WT
19.6
AHX640WR0820M

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
20
ZEFF
20
ZEFP
20
KAPR
50
RPMX
4000
GAMF
-4
GAMP
-6
WT
19.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15T 106903 TKY15T
inventory mark
$4.52
CWAHX640WN 504410 CWAHX640WN
inventory mark
$31.16
LS0622T 504428 LS0622T
inventory mark
$10.96
