diaedge

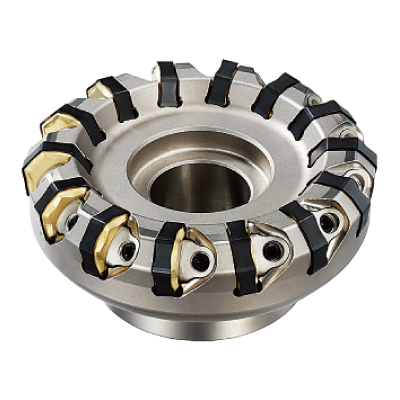

AHX640WR0828M
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

505033

ANSI

AHX640WR0828M

ISO

AHX640WR0828M

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling

12

Regular price $3,719.97 USD
Regular price Sale price $3,719.97 USD
Sale

EDP

505033

ANSI

AHX640WR0828M

ISO

AHX640WR0828M

K (Cast Iron)
50 Accuracy_finishing Accuracy_roughing Application_Face milling
View full details
  • Dimensions
  • Features

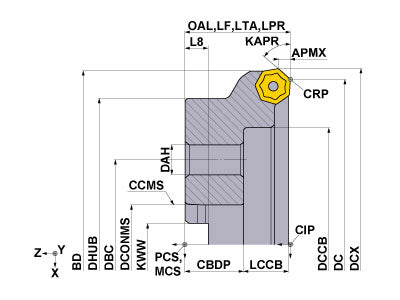

  • Drawings
  • Technical Information
AHX640WR0828M
Coolant
External
Hand
Right

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
28
ZEFF
28
ZEFP
28
KAPR
50
RPMX
4000
GAMF
-4
GAMP
-6
WT
19.6
AHX640WR0828M

Unit: inch

DC
8
DCX
8.494
LF
2.5
APMX
0.236
OAL
2.5
DCONMS
2.5
NOF
28
ZEFF
28
ZEFP
28
KAPR
50
RPMX
4000
GAMF
-4
GAMP
-6
WT
19.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
CWAHX640WN 504410 CWAHX640WN
inventory mark
$31.16
TKY15T 106903 TKY15T
inventory mark
$4.52
LS0622T 504428 LS0622T
inventory mark
$10.96
