diaedge

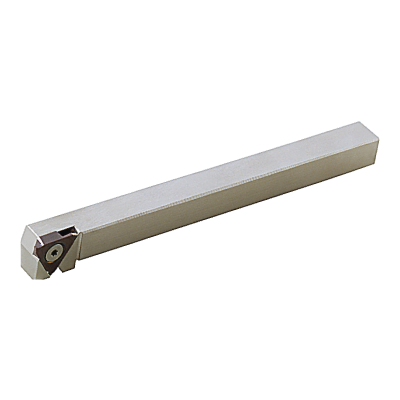

GTBHR-103
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

506503

ANSI

GTBHR-103

ISO

GTBHR-103

P (Steel) M (Stainless) N (Non-Ferrous)

10

Regular price $161.92 USD
Regular price Sale price $161.92 USD
Sale

EDP

506503

ANSI

GTBHR-103

ISO

GTBHR-103

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

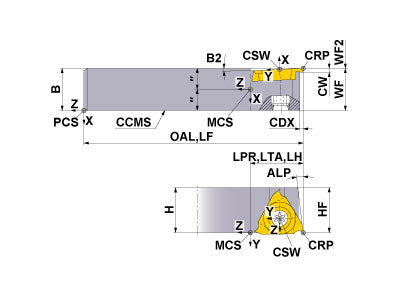

  • Drawings
  • Technical Information
GTBHR-103
Coolant
External
Hand
Right

Unit: inch

CW
0.059
CDX
0.118
H
0.625
B
0.625
LF
4.724
LH
0.602
HF
0.625
WF2
0
B2
2
OAL
4.724
GTBHR-103

Unit: inch

CW
0.059
CDX
0.118
H
0.625
B
0.625
LF
4.724
LH
0.602
HF
0.625
WF2
0
B2
2
OAL
4.724

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS404W 274765 NS404W
inventory mark
$10.76
