BTVHR-102
Skip to product information

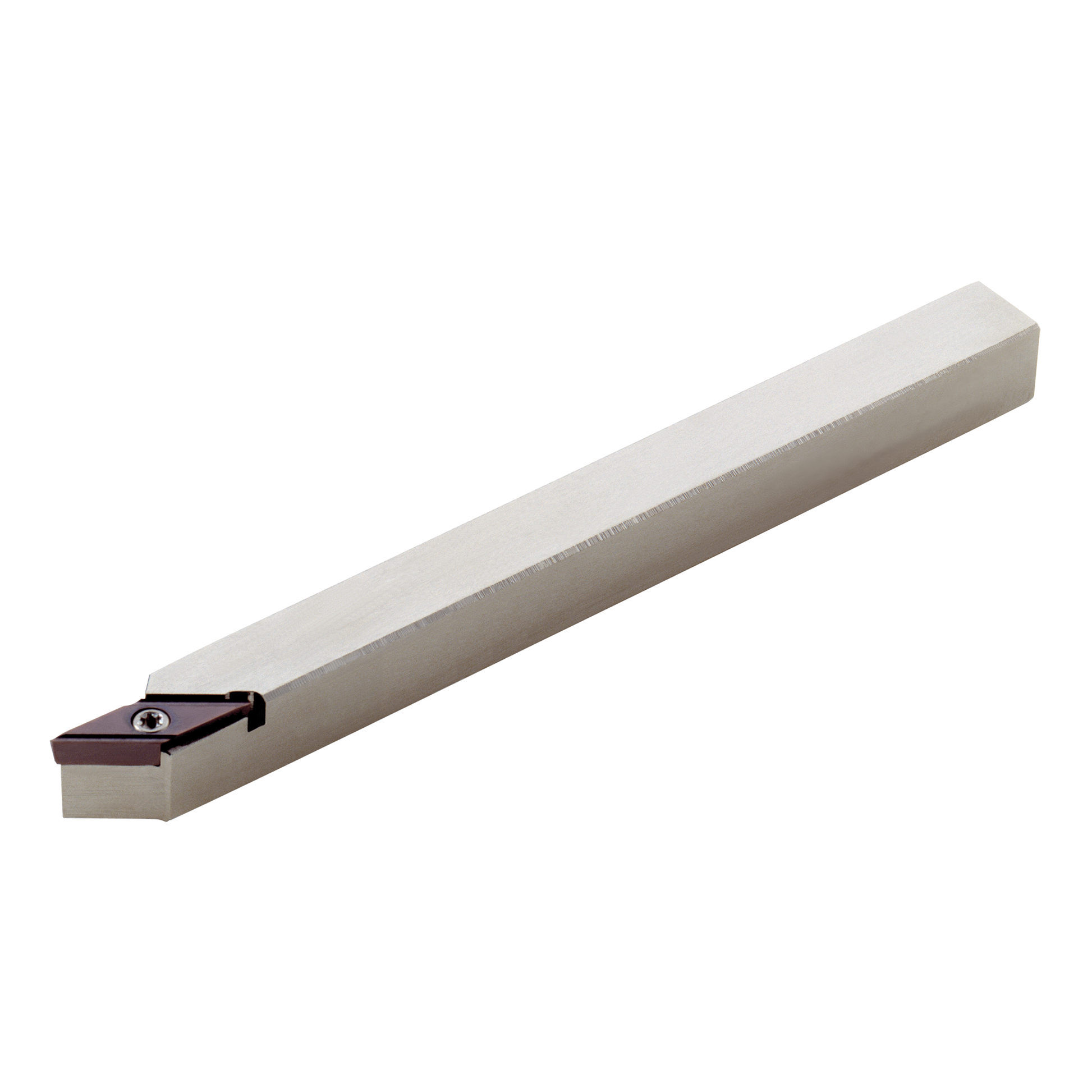

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

506538

ANSI

BTVHR-102

ISO

BTVHR-102

P (Steel) M (Stainless) N (Non-Ferrous)

9

Regular price $316.33 USD
Regular price Sale price $316.33 USD
Sale

EDP

506538

ANSI

BTVHR-102

ISO

BTVHR-102

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

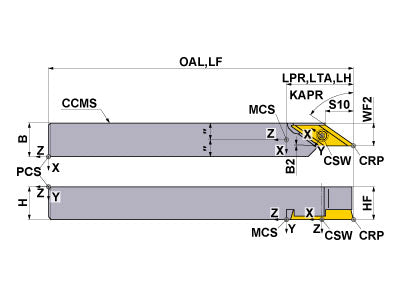

  • Drawings
  • Technical Information
BTVHR-102
Coolant
External
Hand
Right

Unit: inch

H
0.625
B
0.625
LF
4.724
LH
0.787
HF
0.625
WF2
0.295
KAPR
53
BTVHR-102

Unit: inch

H
0.625
B
0.625
LF
4.724
LH
0.787
HF
0.625
WF2
0.295
KAPR
53

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS251 274722 NS251
inventory mark
$10.76
