diaedge
CTAHL-102
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

506554

ANSI

CTAHL-102

ISO

CTAHL-102

P (Steel) M (Stainless) N (Non-Ferrous)

45

Regular price $262.12 USD
Regular price Sale price $262.12 USD
Sale

EDP

506554

ANSI

CTAHL-102

ISO

CTAHL-102

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CTAHL-102
Coolant
External
Hand
Left

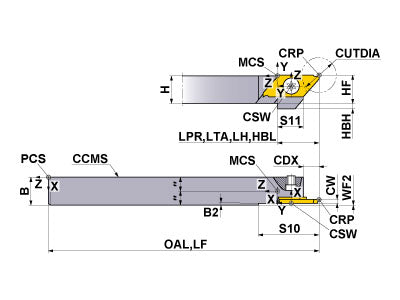

Unit: inch

CW
0.059
CDX
0.217
CUTDIA
0.472
H
0.625
B
0.625
LF
4.724
LH
0.591
HF
0.625
S11
0.374
WF2
0
B2
1
OAL
4.724
CTAHL-102

Unit: inch

CW
0.059
CDX
0.217
CUTDIA
0.472
H
0.625
B
0.625
LF
4.724
LH
0.591
HF
0.625
S11
0.374
WF2
0
B2
1
OAL
4.724

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS403W 274757 NS403W
inventory mark
$11.62
