diaedge

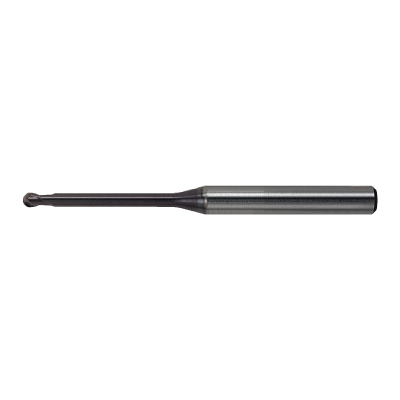

VF2XLBSR0020N040
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

510262

ANSI

VF-2XLBS/0.2RX4

ISO

VF2XLBSR0020N040

H (Hard material)

2

Regular price $91.61 USD
Regular price Sale price $91.61 USD
Sale

EDP

510262

ANSI

VF-2XLBS/0.2RX4

ISO

VF2XLBSR0020N040

H (Hard material)
View full details
  • Dimensions
  • Features

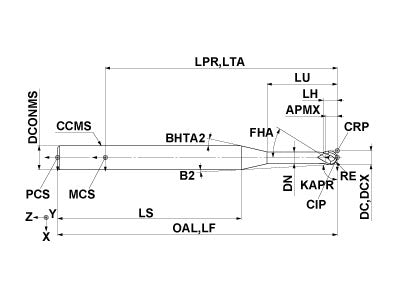

  • Drawings
  • Technical Information
VF2XLBSR0020N040
Coolant
External
Hand
Right

Unit: mm

DC
0.4
APMX
0.32
LU
4
LH
0.34
OAL
40
DN
0.36
DCONMS
4
BHTA2
15
RE
0.2
FHA
30
ZEFP
2
ZEFF
2
VF2XLBSR0020N040

Unit: mm

DC
0.4
APMX
0.32
LU
4
LH
0.34
OAL
40
DN
0.36
DCONMS
4
BHTA2
15
RE
0.2
FHA
30
ZEFP
2
ZEFF
2
