diaedge
VF2XLBSR0040N060
Skip to product information

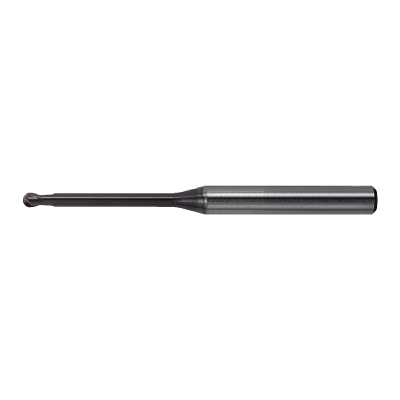

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

510342

ANSI

VF-2XLBS/0.4RX6

ISO

VF2XLBSR0040N060

H (Hard material)

1

Regular price $59.40 USD
Regular price Sale price $59.40 USD
Sale

EDP

510342

ANSI

VF-2XLBS/0.4RX6

ISO

VF2XLBSR0040N060

H (Hard material)
View full details
  • Dimensions
  • Features

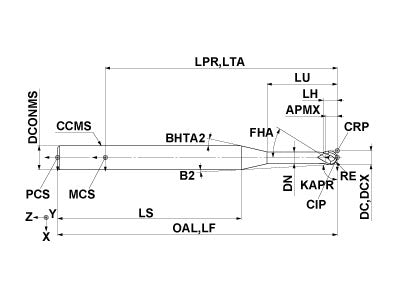

  • Drawings
  • Technical Information
VF2XLBSR0040N060
Coolant
External
Hand
Right

Unit: mm

DC
0.8
APMX
0.64
LU
6
LH
0.66
OAL
40
DN
0.76
DCONMS
4
BHTA2
15
RE
0.4
FHA
30
ZEFP
2
ZEFF
2
VF2XLBSR0040N060

Unit: mm

DC
0.8
APMX
0.64
LU
6
LH
0.66
OAL
40
DN
0.76
DCONMS
4
BHTA2
15
RE
0.4
FHA
30
ZEFP
2
ZEFF
2
