EDP
510351
ANSI
VF-2XLBS/0.5RX3
ISO
VF2XLBSR0050N030

Stock
2
Price
Regular price
$50.98 USD
Regular price
Sale price
$50.98 USD
Unit price
/
per
EDP
510351
ANSI
VF-2XLBS/0.5RX3
ISO
VF2XLBSR0050N030

Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features

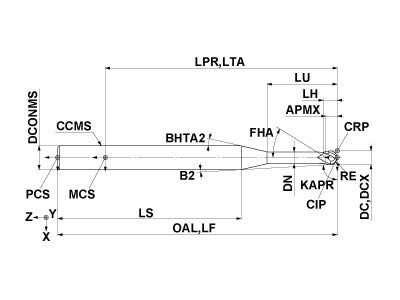

- Drawings
- Technical Information

Coolant
External
Hand
Right
Unit: mm
DC
1
APMX
0.8
LU
3
LH
0.83
OAL
40
DN
0.94
DCONMS
4
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2

Unit: mm
DC
1
APMX
0.8
LU
3
LH
0.83
OAL
40
DN
0.94
DCONMS
4
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
2 flute long neck ball nose end mill for high-speed machining of hardened steel.
Short shank type suitable for use with a shrink fit holder.
2D Model (DXF)
3D Model (STP)
