EDP

518416

ANSI

VF-2MV/1

ISO

VF2MVD0100

P (Steel) H (Hard material)

3

Regular price $40.09 USD
Regular price Sale price $40.09 USD
Sale

EDP

518416

ANSI

VF-2MV/1

ISO

VF2MVD0100

P (Steel) H (Hard material)
View full details
  • Dimensions
  • Features

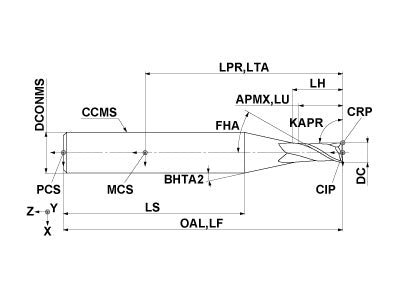

  • Drawings
  • Technical Information
VF2MVD0100
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
2.5
LU
2.5
LH
2.9
OAL
40
DCONMS
4
BHTA2
15
FHA
37.5
ZEFP
2
ZEFF
2
VF2MVD0100

Unit: mm

DC
1
APMX
2.5
LU
2.5
LH
2.9
OAL
40
DCONMS
4
BHTA2
15
FHA
37.5
ZEFP
2
ZEFF
2
