diaedge
VF2MVD0200
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

518432

ANSI

VF-2MV/2

ISO

VF2MVD0200

P (Steel) H (Hard material)

43

Regular price $40.09 USD
Regular price Sale price $40.09 USD
Sale

EDP

518432

ANSI

VF-2MV/2

ISO

VF2MVD0200

P (Steel) H (Hard material)
View full details
  • Dimensions
  • Features

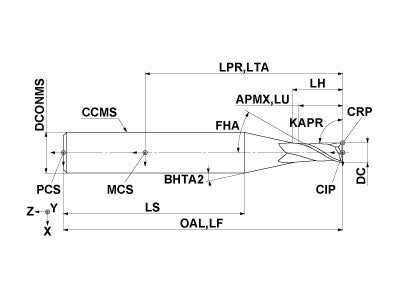

  • Drawings
  • Technical Information
VF2MVD0200
Coolant
External
Hand
Right

Unit: mm

DC
2
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
FHA
37.5
ZEFP
2
ZEFF
2
VF2MVD0200

Unit: mm

DC
2
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
FHA
37.5
ZEFP
2
ZEFF
2
