diaedge
VFHVRBD1200R30N060
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

528286

ANSI

VF-HVRB/3RX12X60

ISO

VFHVRBD1200R30N060

P (Steel) K (Cast Iron) H (Hard material)

27

Regular price $247.47 USD
Regular price Sale price $247.47 USD
Sale

EDP

528286

ANSI

VF-HVRB/3RX12X60

ISO

VFHVRBD1200R30N060

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

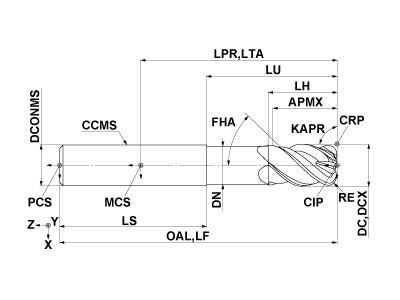

  • Drawings
  • Technical Information
VFHVRBD1200R30N060
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
18
LU
60
LH
18.15
OAL
120
DN
11.7
DCONMS
12
RE
3
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD1200R30N060

Unit: mm

DC
12
APMX
18
LU
60
LH
18.15
OAL
120
DN
11.7
DCONMS
12
RE
3
FHA
45
ZEFP
4
ZEFF
4
