diaedge
VFHVRBD0800R05N024
Skip to product information

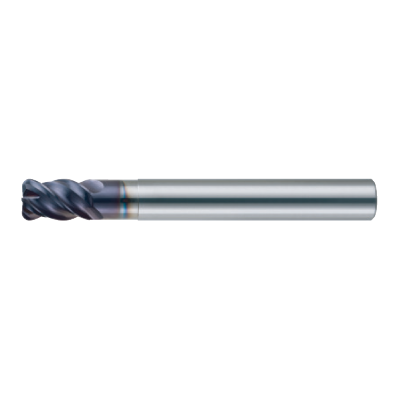

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

528382

ANSI

VF-HVRB/0.5RX8X24

ISO

VFHVRBD0800R05N024

P (Steel) K (Cast Iron) H (Hard material)

16

Regular price $118.32 USD
Regular price Sale price $118.32 USD
Sale

EDP

528382

ANSI

VF-HVRB/0.5RX8X24

ISO

VFHVRBD0800R05N024

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

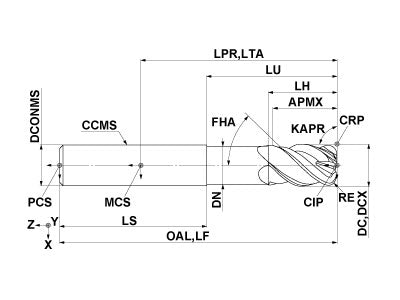

  • Drawings
  • Technical Information
VFHVRBD0800R05N024
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
12
LU
24
LH
12.08
OAL
60
DN
7.85
DCONMS
8
RE
0.5
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0800R05N024

Unit: mm

DC
8
APMX
12
LU
24
LH
12.08
OAL
60
DN
7.85
DCONMS
8
RE
0.5
FHA
45
ZEFP
4
ZEFF
4
