diaedge
VFHVRBD0800R10N040
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

528411

ANSI

VF-HVRB/1RX8X40

ISO

VFHVRBD0800R10N040

P (Steel) K (Cast Iron) H (Hard material)

27

Regular price $144.69 USD
Regular price Sale price $144.69 USD
Sale

EDP

528411

ANSI

VF-HVRB/1RX8X40

ISO

VFHVRBD0800R10N040

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

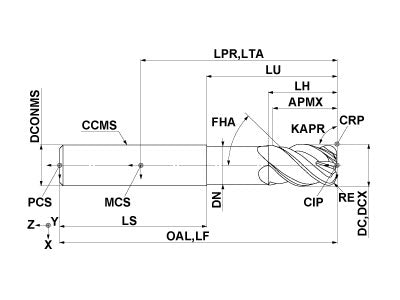

  • Drawings
  • Technical Information
VFHVRBD0800R10N040
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
12
LU
40
LH
12.08
OAL
100
DN
7.85
DCONMS
8
RE
1
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0800R10N040

Unit: mm

DC
8
APMX
12
LU
40
LH
12.08
OAL
100
DN
7.85
DCONMS
8
RE
1
FHA
45
ZEFP
4
ZEFF
4
