SRFU08S10M
print open mailer

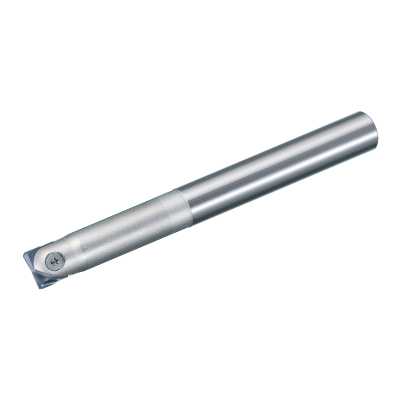

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538134

ANSI

SRFU08S10M

ISO

SRFU08S10M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
14

Price
$247.34 USD
$247.34 USD
Sale

EDP

538134

ANSI

SRFU08S10M

ISO

SRFU08S10M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

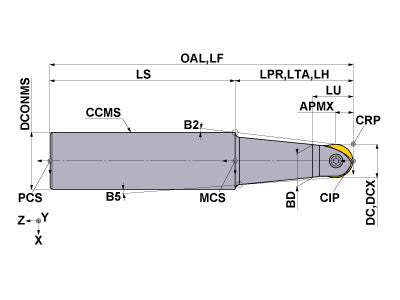

SRFU08S10M
Coolant
External
Hand
Right

Unit: inch

DC
0.5
DCX
0.5
LF
4.75
APMX
0.27
LH
2
OAL
4.75
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
WT
0.331
SRFU08S10M

Unit: inch

DC
0.5
DCX
0.5
LF
4.75
APMX
0.27
LH
2
OAL
4.75
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
WT
0.331


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS3510T 448614 RS3510T
inventory mark
$36.77
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY10D 242261 TKY10D
inventory mark
$17.13
