SRFU10S12M
print open mailer

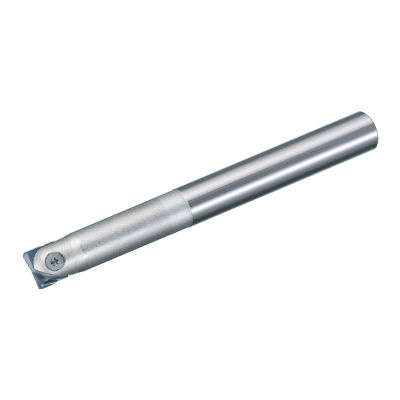

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538142

ANSI

SRFU10S12M

ISO

SRFU10S12M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
10

Price
$271.40 USD
$271.40 USD
Sale

EDP

538142

ANSI

SRFU10S12M

ISO

SRFU10S12M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

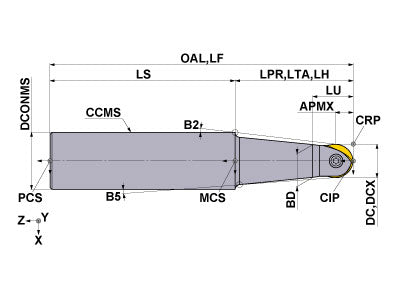

  • Drawings
  • Technical Information
SRFU10S12M
Coolant
External
Hand
Right

Unit: mm

DC
15.875
DCX
15.875
LF
130.175
APMX
8.94
LH
50.8
OAL
130.175
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
WT
0.551
SRFU10S12M

Unit: mm

DC
15.875
DCX
15.875
LF
130.175
APMX
8.94
LH
50.8
OAL
130.175
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
WT
0.551


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS4015T 361949 RS4015T
inventory mark
$45.87
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY15T 106903 TKY15T
inventory mark
$7.24
