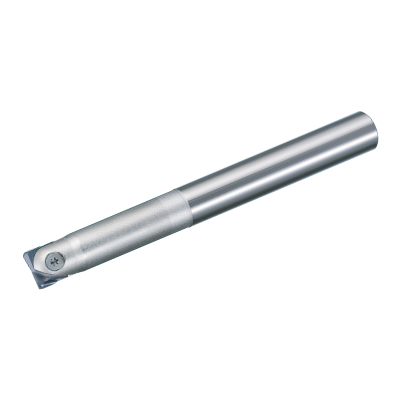

SRFU12S16M
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538151

ANSI

SRFU12S16M

ISO

SRFU12S16M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
10

Price
$293.92 USD
$293.92 USD
Sale

EDP

538151

ANSI

SRFU12S16M

ISO

SRFU12S16M

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

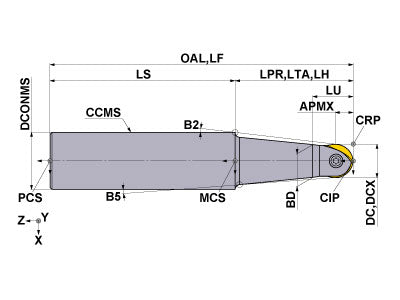

  • Drawings
  • Technical Information
SRFU12S16M
Coolant
External
Hand
Right

Unit: mm

DC
19.05
DCX
19.05
LF
152.4
APMX
10.52
LH
73.025
OAL
152.4
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2
WT
1.058
SRFU12S16M

Unit: mm

DC
19.05
DCX
19.05
LF
152.4
APMX
10.52
LH
73.025
OAL
152.4
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2
WT
1.058


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS5020T 448622 RS5020T
inventory mark
$33.96
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY20T 213663 TKY20T
inventory mark
$6.67
