SRFU06S08L
print open mailer

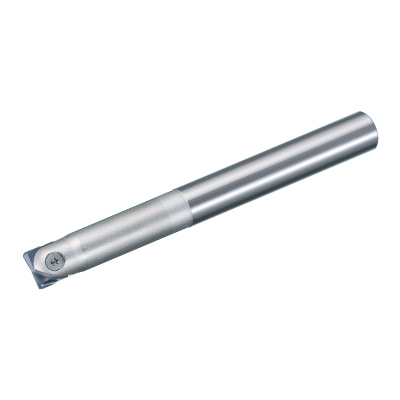

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538185

ANSI

SRFU06S08L

ISO

SRFU06S08L

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
7

Price
$313.16 USD
$313.16 USD
Sale

EDP

538185

ANSI

SRFU06S08L

ISO

SRFU06S08L

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

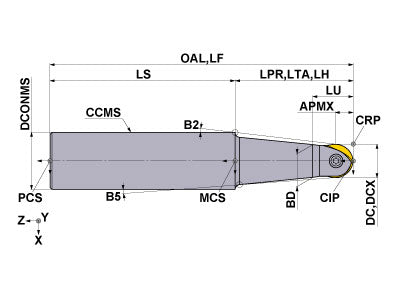

  • Drawings
  • Technical Information
SRFU06S08L
Coolant
External
Hand
Right

Unit: mm

DC
9.525
DCX
9.525
LF
152.4
APMX
5.26
LH
63.5
OAL
152.4
DCONMS
12.7
NOF
2
ZEFF
2
ZEFP
2
WT
0.265
SRFU06S08L

Unit: mm

DC
9.525
DCX
9.525
LF
152.4
APMX
5.26
LH
63.5
OAL
152.4
DCONMS
12.7
NOF
2
ZEFF
2
ZEFP
2
WT
0.265


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08D 106895 TKY08D
inventory mark
$15.86
RS3008TS 538118 RS3008TS
inventory mark
$32.25
MK1KS 291805 MK1KS
inventory mark
$4.79
