SRFU10S10MW
print open mailer

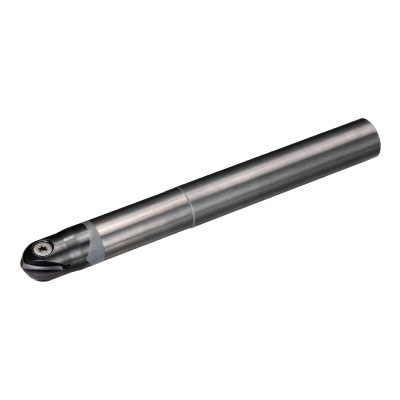

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538265

ANSI

SRFU10S10MW

ISO

SRFU10S10MW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
2

Price
$755.13 USD
$755.13 USD
Sale

EDP

538265

ANSI

SRFU10S10MW

ISO

SRFU10S10MW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

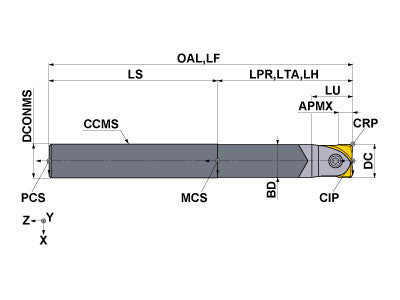

  • Drawings
  • Technical Information
SRFU10S10MW
Coolant
External
Hand
Right

Unit: mm

DC
15.875
DCX
15.875
LF
133.35
APMX
8.94
LH
53.975
OAL
133.35
DCONMS
15.875
NOF
2
ZEFF
2
ZEFP
2
SRFU10S10MW

Unit: mm

DC
15.875
DCX
15.875
LF
133.35
APMX
8.94
LH
53.975
OAL
133.35
DCONMS
15.875
NOF
2
ZEFF
2
ZEFP
2


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
RS4015T 361949 RS4015T
inventory mark
$45.87
TKY15T 106903 TKY15T
inventory mark
$7.24
