SRFU12S12MW
print open mailer

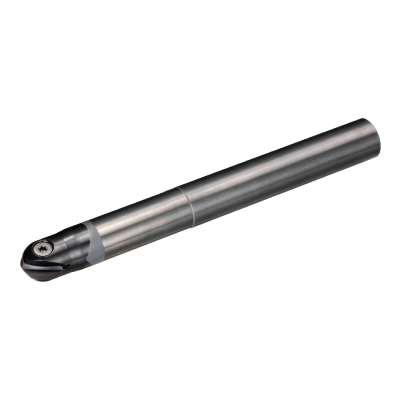

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538273

ANSI

SRFU12S12MW

ISO

SRFU12S12MW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
7

Price
$1,064.22 USD
$1,064.22 USD
Sale

EDP

538273

ANSI

SRFU12S12MW

ISO

SRFU12S12MW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

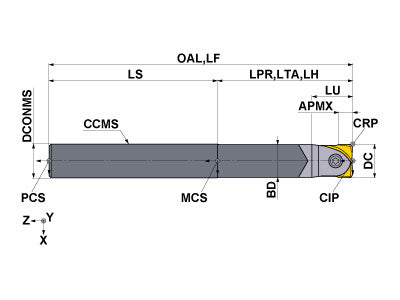

  • Drawings
  • Technical Information
SRFU12S12MW
Coolant
External
Hand
Right

Unit: mm

DC
19.05
DCX
19.05
LF
180.975
APMX
10.52
LH
101.6
OAL
180.975
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
SRFU12S12MW

Unit: mm

DC
19.05
DCX
19.05
LF
180.975
APMX
10.52
LH
101.6
OAL
180.975
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS5020T 448622 RS5020T
inventory mark
$33.96
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY20T 213663 TKY20T
inventory mark
$6.67
