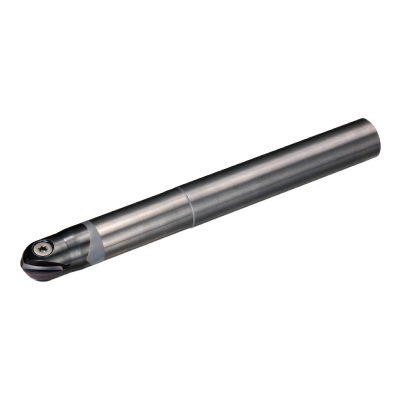

SRFU08S08LW
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538311

ANSI

SRFU08S08LW

ISO

SRFU08S08LW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
11

Price
$589.58 USD
$589.58 USD
Sale

EDP

538311

ANSI

SRFU08S08LW

ISO

SRFU08S08LW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
SRFU08S08LW
Coolant
External
Hand
Right

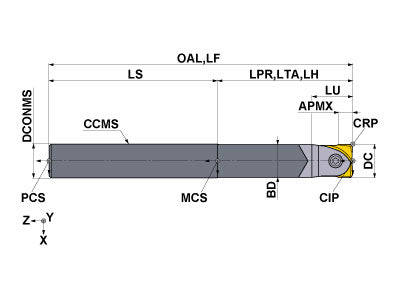

Unit: mm

DC
12.7
DCX
12.7
LF
168.275
APMX
6.86
LH
79.375
OAL
168.275
DCONMS
12.7
NOF
2
ZEFF
2
ZEFP
2
SRFU08S08LW

Unit: mm

DC
12.7
DCX
12.7
LF
168.275
APMX
6.86
LH
79.375
OAL
168.275
DCONMS
12.7
NOF
2
ZEFF
2
ZEFP
2


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY10D 242261 TKY10D
inventory mark
$17.13
MK1KS 291805 MK1KS
inventory mark
$4.79
RS3510T 448614 RS3510T
inventory mark
$44.93
