SRFU16S16LW
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

538345

ANSI

SRFU16S16LW

ISO

SRFU16S16LW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
3

Price
$1,892.02 USD
$1,892.02 USD
Sale

EDP

538345

ANSI

SRFU16S16LW

ISO

SRFU16S16LW

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

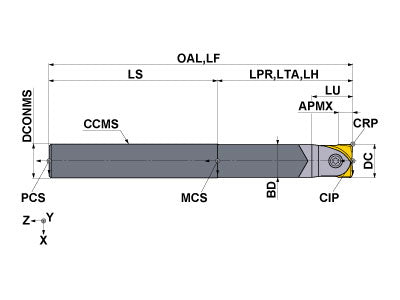

  • Drawings
  • Technical Information
SRFU16S16LW
Coolant
External
Hand
Right

Unit: mm

DC
25.4
DCX
25.4
LF
304.8
APMX
13.69
LH
206.375
OAL
304.8
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2
SRFU16S16LW

Unit: mm

DC
25.4
DCX
25.4
LF
304.8
APMX
13.69
LH
206.375
OAL
304.8
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS6025T 448631 RS6025T
inventory mark
$38.75
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY25T 106908 TKY25T
inventory mark
$6.53
