GY2M0475H040N-GM MY5015
Skip to product information

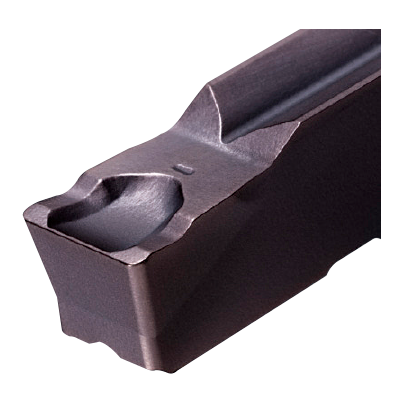

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

543486

ANSI

GY2M0475H040N-GM MY5015

ISO

GY2M0475H040N-GM MY5015

P (Steel) K (Cast Iron)

290

Regular price $37.14 USD
Regular price Sale price $37.14 USD
Sale

EDP

543486

ANSI

GY2M0475H040N-GM MY5015

ISO

GY2M0475H040N-GM MY5015

P (Steel) K (Cast Iron)
View full details
  • Dimensions

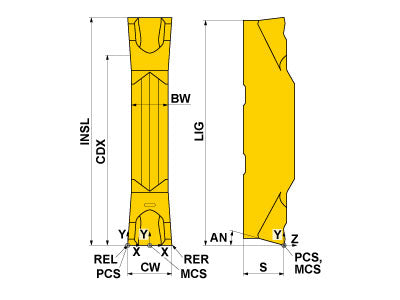

  • Drawings
  • Technical Information
GY2M0475H040N-GM MY5015
Hand
Neutral

Unit: mm

CW
4.75
REL
0.4
RER
0.4
CDX
24.3
CWTOLL
-0.04
CWTOLU
0.04
S
4.65
GY2M0475H040N-GM MY5015

Unit: mm

CW
4.75
REL
0.4
RER
0.4
CDX
24.3
CWTOLL
-0.04
CWTOLU
0.04
S
4.65
