EDP

545481

ANSI

VF-HVRB/0.2RX1X8

ISO

VFHVRBD0100R02N008

P (Steel) K (Cast Iron) H (Hard material)

63

Regular price $72.63 USD
Regular price Sale price $72.63 USD
Sale

EDP

545481

ANSI

VF-HVRB/0.2RX1X8

ISO

VFHVRBD0100R02N008

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

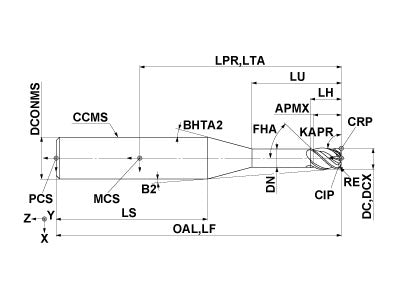

  • Drawings
  • Technical Information
VFHVRBD0100R02N008
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
1
LU
8
LH
1.03
OAL
60
DN
0.94
DCONMS
6
BHTA2
15
RE
0.2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0100R02N008

Unit: mm

DC
1
APMX
1
LU
8
LH
1.03
OAL
60
DN
0.94
DCONMS
6
BHTA2
15
RE
0.2
FHA
45
ZEFP
4
ZEFF
4
