diaedge
VFHVRBD0100R02N010
Skip to product information

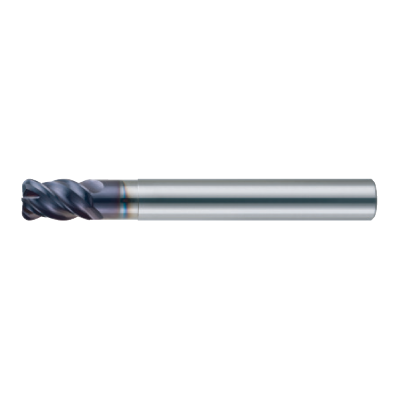

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545490

ANSI

VF-HVRB/0.2RX1X10

ISO

VFHVRBD0100R02N010

P (Steel) K (Cast Iron) H (Hard material)

17

Regular price $73.25 USD
Regular price Sale price $73.25 USD
Sale

EDP

545490

ANSI

VF-HVRB/0.2RX1X10

ISO

VFHVRBD0100R02N010

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VFHVRBD0100R02N010
Coolant
External
Hand
Right

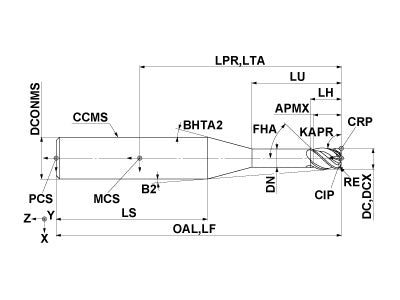

Unit: mm

DC
1
APMX
1
LU
10
LH
1.03
OAL
60
DN
0.94
DCONMS
6
BHTA2
15
RE
0.2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0100R02N010

Unit: mm

DC
1
APMX
1
LU
10
LH
1.03
OAL
60
DN
0.94
DCONMS
6
BHTA2
15
RE
0.2
FHA
45
ZEFP
4
ZEFF
4
