EDP

545529

ANSI

VF-HVRB/0.3RX1.5X4

ISO

VFHVRBD0150R03N004

P (Steel) K (Cast Iron) H (Hard material)

560

Regular price $70.12 USD
Regular price Sale price $70.12 USD
Sale

EDP

545529

ANSI

VF-HVRB/0.3RX1.5X4

ISO

VFHVRBD0150R03N004

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

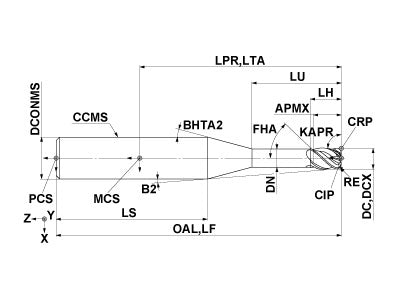

VFHVRBD0150R03N004
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
1.5
LU
4
LH
1.53
OAL
60
DN
1.44
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0150R03N004

Unit: mm

DC
1.5
APMX
1.5
LU
4
LH
1.53
OAL
60
DN
1.44
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
4
ZEFF
4
