EDP

545561

ANSI

VF-HVRB/0.3RX1.5X20

ISO

VFHVRBD0150R03N020

P (Steel) K (Cast Iron) H (Hard material)

19

Regular price $80.15 USD
Regular price Sale price $80.15 USD
Sale

EDP

545561

ANSI

VF-HVRB/0.3RX1.5X20

ISO

VFHVRBD0150R03N020

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

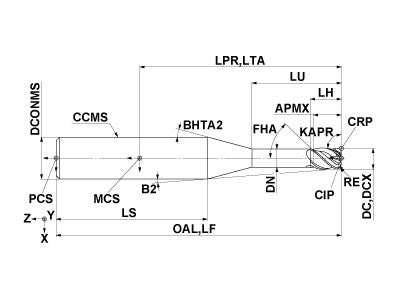

  • Drawings
  • Technical Information
VFHVRBD0150R03N020
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
1.5
LU
20
LH
1.53
OAL
80
DN
1.44
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0150R03N020

Unit: mm

DC
1.5
APMX
1.5
LU
20
LH
1.53
OAL
80
DN
1.44
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
4
ZEFF
4
