diaedge
VFHVRBD0300R05N020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545650

ANSI

VF-HVRB/0.5RX3X20

ISO

VFHVRBD0300R05N020

P (Steel) K (Cast Iron) H (Hard material)

29

Regular price $97.37 USD
Regular price Sale price $97.37 USD
Sale

EDP

545650

ANSI

VF-HVRB/0.5RX3X20

ISO

VFHVRBD0300R05N020

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

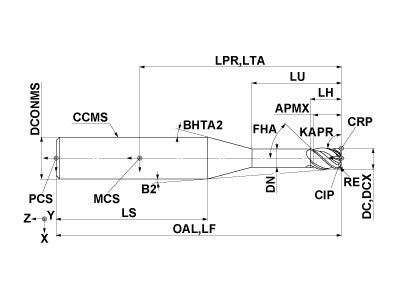

  • Drawings
  • Technical Information
VFHVRBD0300R05N020
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
3
LU
20
LH
3.05
OAL
80
DN
2.9
DCONMS
6
BHTA2
15
RE
0.5
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0300R05N020

Unit: mm

DC
3
APMX
3
LU
20
LH
3.05
OAL
80
DN
2.9
DCONMS
6
BHTA2
15
RE
0.5
FHA
45
ZEFP
4
ZEFF
4
