diaedge
VFHVRBD0700R15
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545799

ANSI

VF-HVRB/1.5RX7

ISO

VFHVRBD0700R15

P (Steel) K (Cast Iron) H (Hard material)

8

Regular price $125.20 USD
Regular price Sale price $125.20 USD
Sale

EDP

545799

ANSI

VF-HVRB/1.5RX7

ISO

VFHVRBD0700R15

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

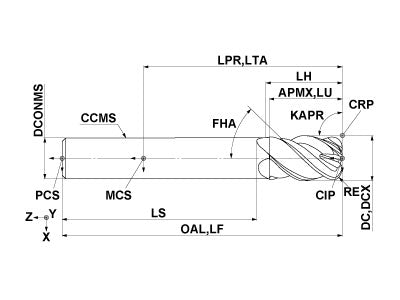

  • Drawings
  • Technical Information
VFHVRBD0700R15
Coolant
External
Hand
Right

Unit: mm

DC
7
APMX
11
LU
11
LH
11.5
OAL
80
DCONMS
6
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0700R15

Unit: mm

DC
7
APMX
11
LU
11
LH
11.5
OAL
80
DCONMS
6
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
