diaedge
VFHVRBD0800R20N072
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545810

ANSI

VF-HVRB/2RX8X72

ISO

VFHVRBD0800R20N072

P (Steel) K (Cast Iron) H (Hard material)

4

Regular price $162.15 USD
Regular price Sale price $162.15 USD
Sale

EDP

545810

ANSI

VF-HVRB/2RX8X72

ISO

VFHVRBD0800R20N072

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

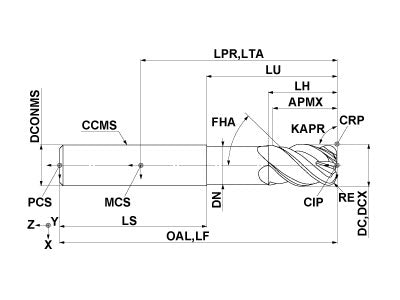

  • Drawings
  • Technical Information
VFHVRBD0800R20N072
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
12
LU
72
LH
12.08
OAL
120
DN
7.85
DCONMS
8
RE
2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD0800R20N072

Unit: mm

DC
8
APMX
12
LU
72
LH
12.08
OAL
120
DN
7.85
DCONMS
8
RE
2
FHA
45
ZEFP
4
ZEFF
4
