diaedge
VFHVRBD1000R20N070
print open mailer

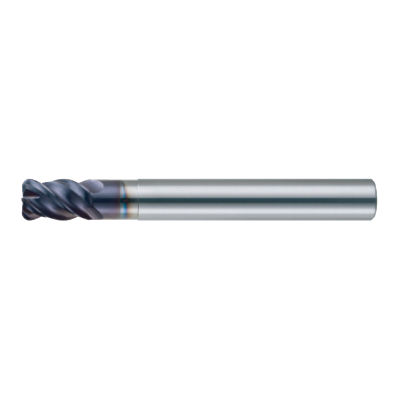

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

545836

ANSI

VF-HVRB/2RX10X70

ISO

VFHVRBD1000R20N070

P (Steel) K (Cast Iron) H (Hard material)

Stock
1

Price
$264.35 USD
$264.35 USD
Sale

EDP

545836

ANSI

VF-HVRB/2RX10X70

ISO

VFHVRBD1000R20N070

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VFHVRBD1000R20N070
Coolant
External
Hand
Right

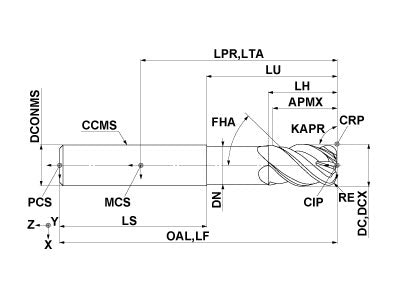

Unit: mm

DC
10
APMX
15
LU
70
LH
15.15
OAL
150
DN
9.7
DCONMS
10
RE
2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD1000R20N070

Unit: mm

DC
10
APMX
15
LU
70
LH
15.15
OAL
150
DN
9.7
DCONMS
10
RE
2
FHA
45
ZEFP
4
ZEFF
4
