diaedge
VFHVRBD1000R20N090
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545844

ANSI

VF-HVRB/2RX10X90

ISO

VFHVRBD1000R20N090

P (Steel) K (Cast Iron) H (Hard material)

2

Regular price $252.30 USD
Regular price Sale price $252.30 USD
Sale

EDP

545844

ANSI

VF-HVRB/2RX10X90

ISO

VFHVRBD1000R20N090

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

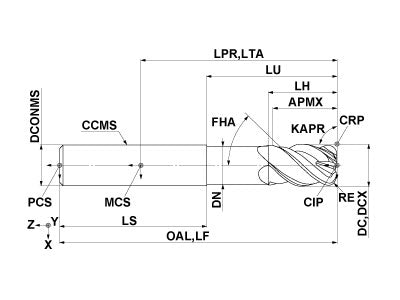

  • Drawings
  • Technical Information
VFHVRBD1000R20N090
Coolant
External
Hand
Right

Unit: mm

DC
10
APMX
15
LU
90
LH
15.15
OAL
150
DN
9.7
DCONMS
10
RE
2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD1000R20N090

Unit: mm

DC
10
APMX
15
LU
90
LH
15.15
OAL
150
DN
9.7
DCONMS
10
RE
2
FHA
45
ZEFP
4
ZEFF
4
