diaedge
VFHVRBD1200R20N084
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

545887

ANSI

VF-HVRB/2RX12X84

ISO

VFHVRBD1200R20N084

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $381.33 USD
Regular price Sale price $381.33 USD
Sale

EDP

545887

ANSI

VF-HVRB/2RX12X84

ISO

VFHVRBD1200R20N084

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

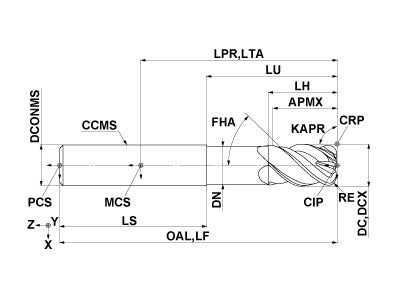

  • Drawings
  • Technical Information
VFHVRBD1200R20N084
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
18
LU
84
LH
18.15
OAL
160
DN
11.7
DCONMS
12
RE
2
FHA
45
ZEFP
4
ZEFF
4
VFHVRBD1200R20N084

Unit: mm

DC
12
APMX
18
LU
84
LH
18.15
OAL
160
DN
11.7
DCONMS
12
RE
2
FHA
45
ZEFP
4
ZEFF
4
