diaedge
MMS0300X3DB DP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

552593

ANSI

MMS0300X3DB DP7020

ISO

MMS0300X3DB DP7020

M (Stainless)

203

Regular price $120.40 USD
Regular price Sale price $120.40 USD
Sale

EDP

552593

ANSI

MMS0300X3DB DP7020

ISO

MMS0300X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features

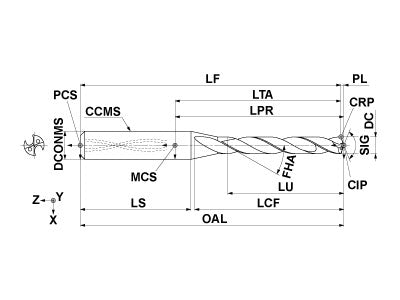

  • Drawings
  • Technical Information
MMS0300X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
3
ULDR
3
LU
9.5
LCF
21.5
OAL
70.5
DCONMS
6
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
MMS0300X3DB DP7020

Unit: mm

DC
3
ULDR
3
LU
9.5
LCF
21.5
OAL
70.5
DCONMS
6
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
