diaedge
MMS0450X3DB DP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

553481

ANSI

MMS0450X3DB DP7020

ISO

MMS0450X3DB DP7020

M (Stainless)

45

Regular price $132.83 USD
Regular price Sale price $132.83 USD
Sale

EDP

553481

ANSI

MMS0450X3DB DP7020

ISO

MMS0450X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features

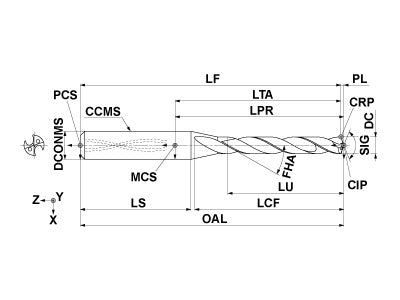

  • Drawings
  • Technical Information
MMS0450X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.5
ULDR
3
LU
14.3
LCF
24.8
OAL
73.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MMS0450X3DB DP7020

Unit: mm

DC
4.5
ULDR
3
LU
14.3
LCF
24.8
OAL
73.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
