diaedge
MMS0900X3DB DP7020
Skip to product information

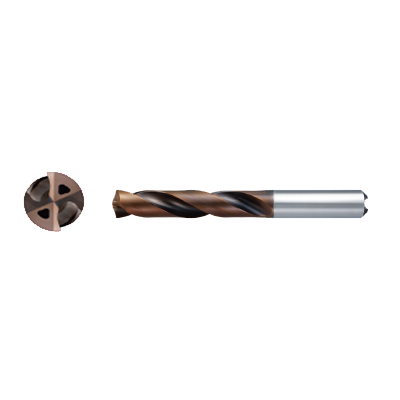

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

553932

ANSI

MMS0900X3DB DP7020

ISO

MMS0900X3DB DP7020

M (Stainless)

39

Regular price $181.11 USD
Regular price Sale price $181.11 USD
Sale

EDP

553932

ANSI

MMS0900X3DB DP7020

ISO

MMS0900X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS0900X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
9
ULDR
3
LU
28.6
LCF
46.6
OAL
102.6
DCONMS
10
PL
1.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
MMS0900X3DB DP7020

Unit: mm

DC
9
ULDR
3
LU
28.6
LCF
46.6
OAL
102.6
DCONMS
10
PL
1.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
