EDP

554206

ANSI

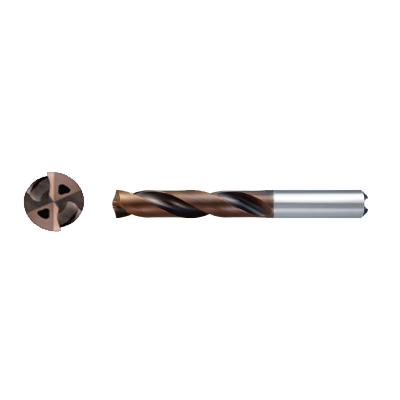

MMS1170X3DB DP7020

ISO

MMS1170X3DB DP7020

M (Stainless)

26

Regular price $300.38 USD
Regular price Sale price $300.38 USD
Sale

EDP

554206

ANSI

MMS1170X3DB DP7020

ISO

MMS1170X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS1170X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
11.7
ULDR
3
LU
37.2
LCF
62.1
OAL
118.1
DCONMS
12
PL
2.1
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
MMS1170X3DB DP7020

Unit: mm

DC
11.7
ULDR
3
LU
37.2
LCF
62.1
OAL
118.1
DCONMS
12
PL
2.1
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
