MMS1380X3DB DP7020
Skip to product information

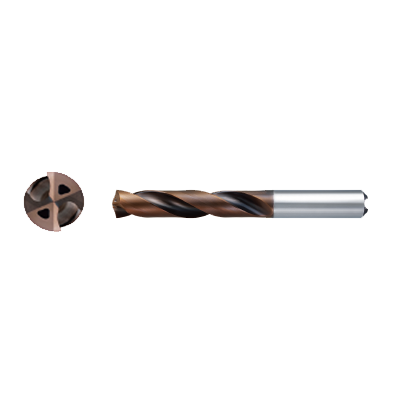

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

554417

ANSI

MMS1380X3DB DP7020

ISO

MMS1380X3DB DP7020

M (Stainless)

11

Regular price $395.67 USD
Regular price Sale price $395.67 USD
Sale

EDP

554417

ANSI

MMS1380X3DB DP7020

ISO

MMS1380X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS1380X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
13.8
ULDR
3
LU
43.9
LCF
72.5
OAL
128.5
DCONMS
14
PL
2.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
MMS1380X3DB DP7020

Unit: mm

DC
13.8
ULDR
3
LU
43.9
LCF
72.5
OAL
128.5
DCONMS
14
PL
2.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
