diaedge

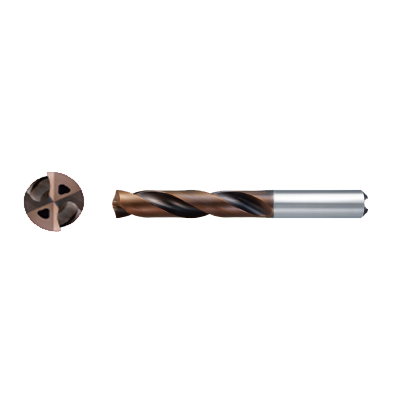

MMS1530X3DB DP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

554564

ANSI

MMS1530X3DB DP7020

ISO

MMS1530X3DB DP7020

M (Stainless)

2

Regular price $416.48 USD
Regular price Sale price $416.48 USD
Sale

EDP

554564

ANSI

MMS1530X3DB DP7020

ISO

MMS1530X3DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MMS1530X3DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
15.3
ULDR
3
LU
48.7
LCF
80.8
OAL
141.8
DCONMS
16
PL
2.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
MMS1530X3DB DP7020

Unit: mm

DC
15.3
ULDR
3
LU
48.7
LCF
80.8
OAL
141.8
DCONMS
16
PL
2.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.027
TCDCON
h6
ZEFF
2
