diaedge
MMS0380X5DB DP7020
Skip to product information

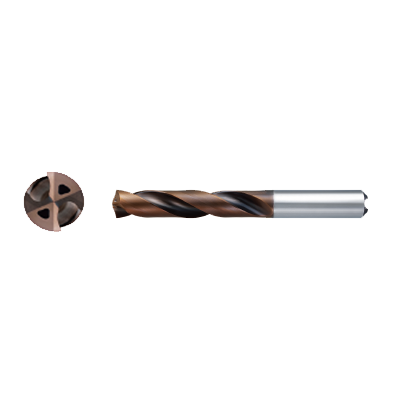

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

555111

ANSI

MMS0380X5DB DP7020

ISO

MMS0380X5DB DP7020

M (Stainless)

148

Regular price $155.85 USD
Regular price Sale price $155.85 USD
Sale

EDP

555111

ANSI

MMS0380X5DB DP7020

ISO

MMS0380X5DB DP7020

M (Stainless)
View full details
  • Dimensions
  • Features

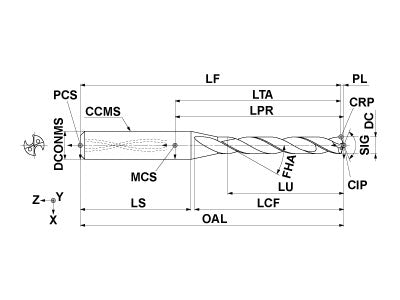

  • Drawings
  • Technical Information
MMS0380X5DB DP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
3.8
ULDR
5
LU
19.7
LCF
30.7
OAL
78.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MMS0380X5DB DP7020

Unit: mm

DC
3.8
ULDR
5
LU
19.7
LCF
30.7
OAL
78.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
